Assemble your 4x3D Drone Stand with ease! Follow these simple steps to get your stand ready for action.

What’s in the box

• 3 x Body pieces (Base, Top Plate, and Blade)
• 2 x M4x8 Phillips screws
• 2 x M3x6 Phillips screws
• 2 x 20mm Standoffs

Note: A Phillips head screwdriver is required for assembly (not included).

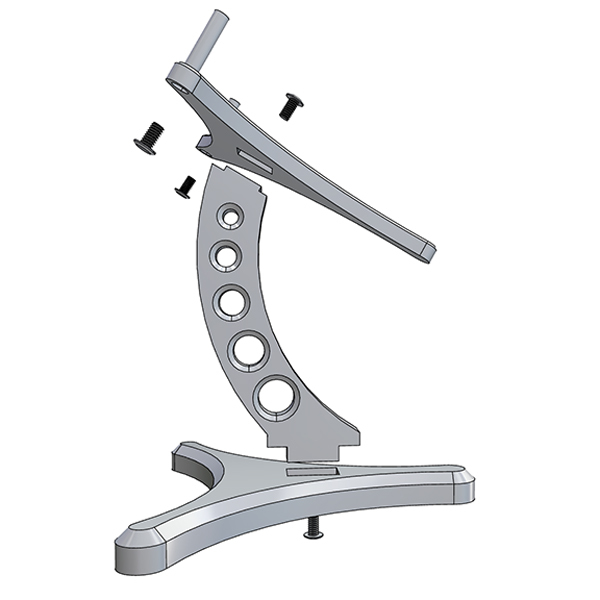

Assembly Instructions

1. Attach the Blade to the Base: Insert the Blade into the base, ensuring it is aligned correctly. Secure it with one of the larger screws (M4x8) using a Phillips head screwdriver.
2. Install the Top Plate: Place the top plate onto the Blade and secure it with the second M4x8 screw.

3. Attach the Standoffs: Align the 20mm standoffs with the upper holes on the top plate. Secure them from the bottom using the smaller screws (M3x6) and your Phillips head screwdriver.

Tip: Double-check all screws for tightness to ensure stability during use.

Download a Printable Version Here

Key Features

• Futuristic design creates a striking display for your FPV drone.
• Durable materials ensure stability and longevity.
• Compact and easy-to-assemble design for portability.

Enjoy the Display!
Thank you for choosing 4x3D. If you have any questions, feel free to Contact Us.
