How to Mount a GMRS Radio in Your Jeep, 4Runner, or Off-Road Rig (Without Drilling)
Posted by Robert on Jun 23rd 2026
The Problem Every Trail Driver Knows
You spent real money on a GMRS or ham radio. You did the research, picked a good one — maybe a Rugged Radios GMR2+, a TidRadio TD-H3, or a Baofeng UV-5R. You're running trails, coordinating with your crew, calling for help when it counts.
And the radio is sitting loose in your cupholder. Or zip-tied to the dash. Or wedged between the seat and the center console where you can't see it and definitely can't reach it with one hand while navigating a shelf road.
This is one of those problems that bothers you every single trip but never quite makes it to the top of the to-do list. This post fixes that.
Here's exactly how to mount a handheld radio in your rig — three ways, no drilling required — and which mounts work for the most popular radios on the market right now.
---
Why a Dedicated Mount Matters on the Trail
A radio bouncing around the cab isn't just annoying. It's a safety problem. When you need to make contact — for a recovery, a road hazard, or a group decision at a fork — you want your radio exactly where you expect it, every time.
A proper mount also protects your investment. Handhelds take real abuse when they're flopping around. A secure cradle mount keeps the radio upright, accessible, and protected whether you're on washboard desert roads, rocky trails, or 35-degree off-camber slopes.
---
Three Ways to Mount Without Drilling

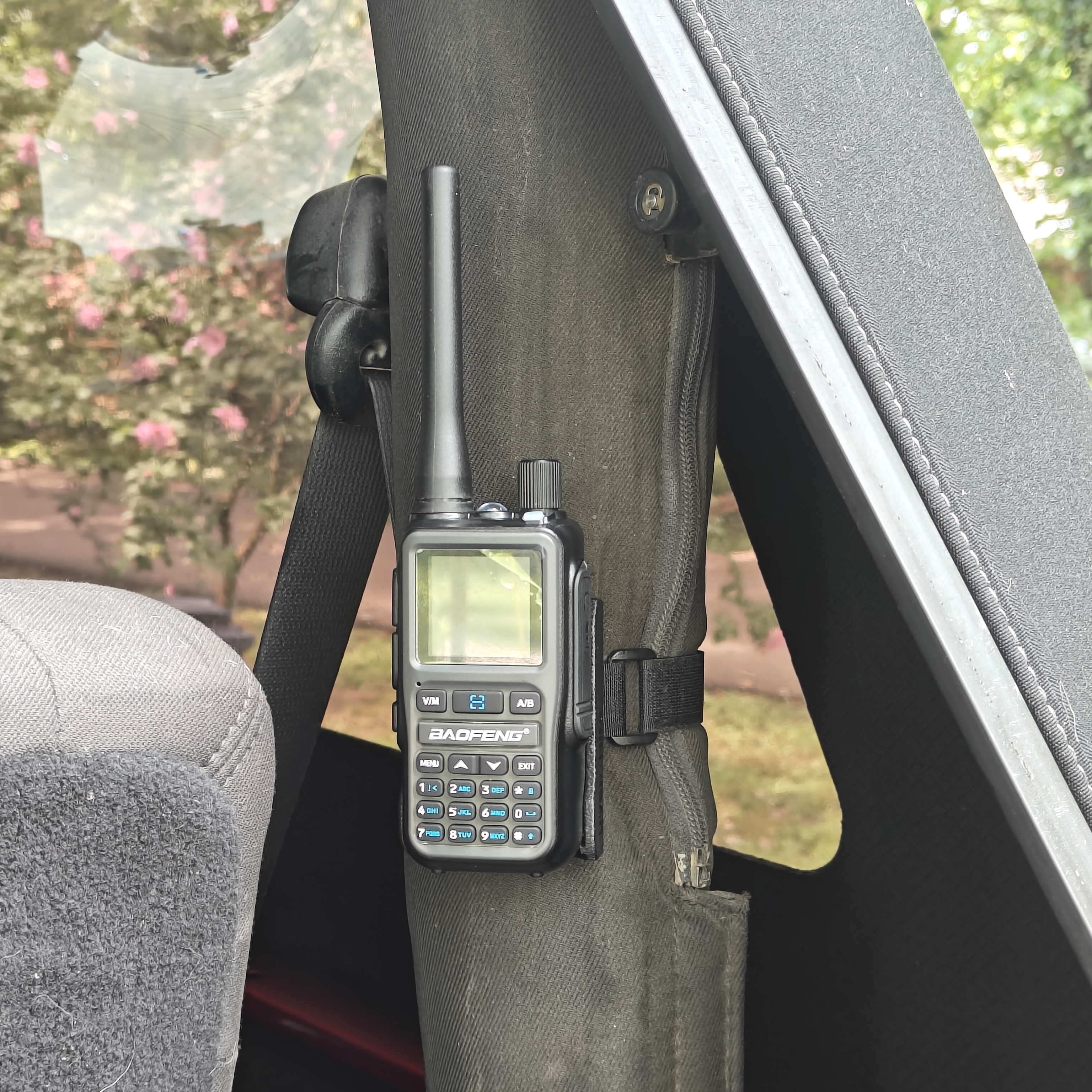

1. Strap Mount (Roll Bar or Cage Tube)
This is the most popular option for Jeep and off-road vehicle owners because it works without touching your interior panels or drilling into anything. The mount attaches to a roll bar, cage tube, or any cylindrical surface using integrated strap slots — typically sized for 20mm Velcro straps or zip ties.
Best for: Jeep Wrangler JK/JL/JT roll bars, tube cage builds, anywhere you want the radio up high and visible.
Works on: Any vehicle with exposed cage tubing or a roof bar. This covers Jeep Wranglers, Gladiators, 4Runners with aftermarket cages, Broncos, and most overland builds.
What you need: The mount plus 20mm Velcro straps (sold separately, or available bundled). Straps fit tubes from about 2.5" to 4" in diameter — covers most OEM roll bars.

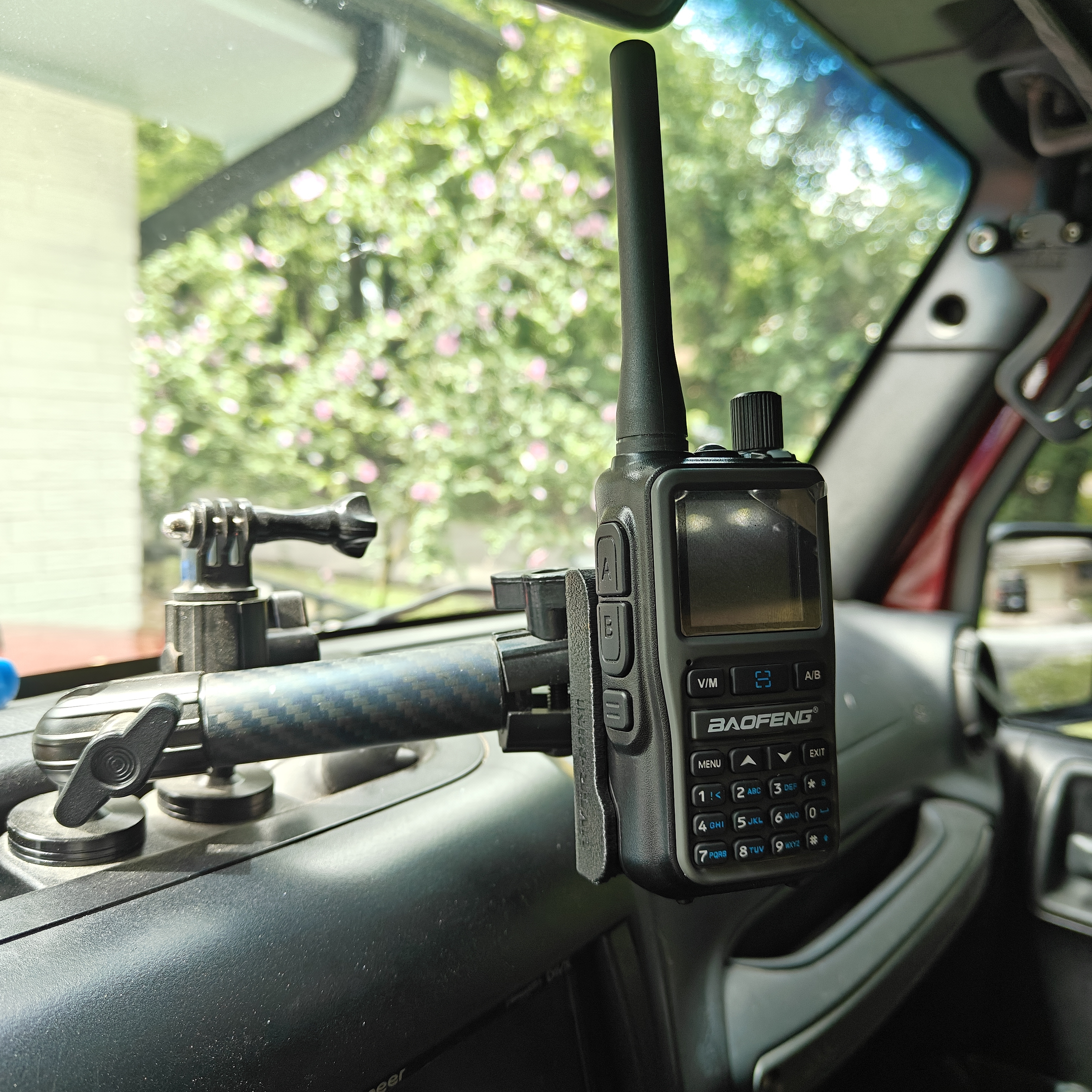

2. Ball Mount (RAM or Compatible System)
Ball mount systems like RAM Mounts are the gold standard for vehicle accessories. They let you position your radio at any angle, adjust on the fly, and move the mount between vehicles. Most purpose-built radio mounts include a rear center hole sized for a ball mount adapter.
Best for: Drivers who want maximum adjustability, or who run multiple vehicles and want to move equipment around.
Works on: Anywhere you can place a ball mount base — dash, A-pillar, windshield frame, roll bar clamp. This works across all vehicle platforms.
What you need: The radio mount plus a ball mount adapter (1" ball is the standard, 20mm is the smaller option). Both are available as bundle options.

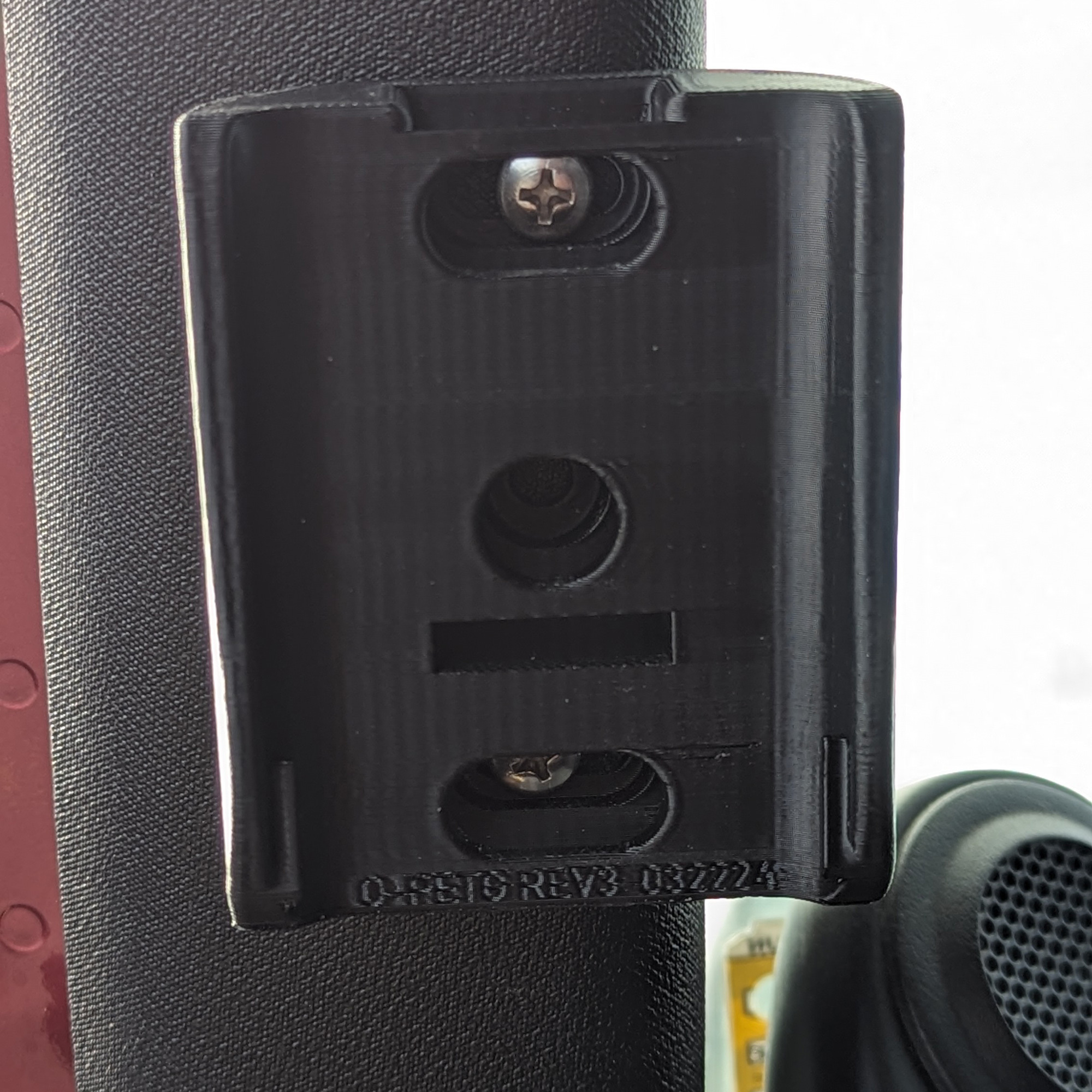

3. Bolt-Down Mount (Permanent Surface Install)
If you want a rock-solid permanent installation — and you're comfortable with two small holes in a surface — bolt-down is the cleanest and most secure option. Two outer holes (5.5mm diameter, 55mm center-to-center spacing) on the rear face of the mount handle permanent surface installation.
Best for: Center console tops, Molle panel accessories, custom dash builds, or any flat surface where you want a permanent home for your radio.
Works on: All platforms. Particularly popular on 4Runner builds where the center console top is a natural mounting surface.
What you need: Two bolts (hardware not included) and about 10 minutes.
---
Which Mount Fits Your Radio?
Not all handhelds are the same shape. A mount designed for a TidRadio TD-H3 won't fit a UV-5R — the dimensions are completely different. Here's where 4X3D's lineup covers the most popular radios on the trail right now:
Rugged Radios GMR2+A GMRS
favorite in the overlanding community. The GMR2+ mount is a one-piece UV-stabilized ABS cradle with all three mounting options built in and an optional mic holder add-on.
4x3d.com/ruggedradios-gmr2-plus-mount/
TidRadio TD-H3 and TD-H3 Plus
One of the best value GMRS radios available right now. The TD-H3 mount is purpose-built for the H3's exact dimensions — not a "fits most handhelds" compromise.
4x3d.com/tidradio-tdh3-mount/
TidRadio TD-H8 and TD-H8 3rd Gen
The H8 is taller and narrower than the H3 — a completely different mount. The TD-H8 version handles both the standard H8 and the 10W 3rd Gen variant.
4x3d.com/tidradio-td-h8-mount/
Baofeng UV-5R
The most common ham radio on the trail. The UV-5R mount is one of the most requested in the lineup.
4x3d.com/baofeng-uv-5r-mount/
Baofeng UV5R-Mini
The smallest ham radio on the trail. The UV5R-Mini mount is one of the most recent in the lineup.
4x3d.com/baofeng-uv5r-mini-radio-mount/
Baofeng UV-9G
The UV-9G is significantly taller and slimmer than the UV-5R — same brand, completely different body. It needs its own mount.
4x3d.com/baofeng-uv-9g-mount/
The Mic Holder Add-On
Most of the mounts above are available with an optional microphone holder that attaches to the side of the cradle. This keeps your PTT mic or speaker-mic clipped and accessible rather than dangling from the radio's port.
One thing to know: the mic holder uses the same side slots as the Velcro strap attachment. So if you're running the strap-mount option, you'll want to use the bolt-down or ball-mount method to keep the mic holder compatible.
Which SKU Should You Order?
Each radio mount is available in several configurations:
- **Mount only** — if you already have straps, a ball mount, or prefer to bolt it down
- **Mount + Velcro straps** — everything you need for a roll bar install
- **Mount + 1" ball adapter** — plug-and-play with any ball mount system
- **Mount + mic holder** — adds the speaker-mic clip
- **Mount + mic holder + ball adapter** — full kit
All ship within 24 hours. Free shipping on US orders at 4x3d.com.
---
Stop Babysitting Your Radio
A loose radio is an annoyance every trip until it becomes a problem at the worst possible moment. Any of the three mounting methods above — strap, ball mount, or bolt-down — will get it secured, accessible, and protected in under 30 minutes.
Pick your radio from the list above, choose your mounting method, and get it done before the next trip.
---
*All 4X3D radio mounts are designed and printed to order in Arkansas. Made from UV-stabilized ABS plastic. Minor surface texture variations are normal for 3D-printed parts.*
